- AC motor: 250 kW
- Max. speed: 3000 rpm

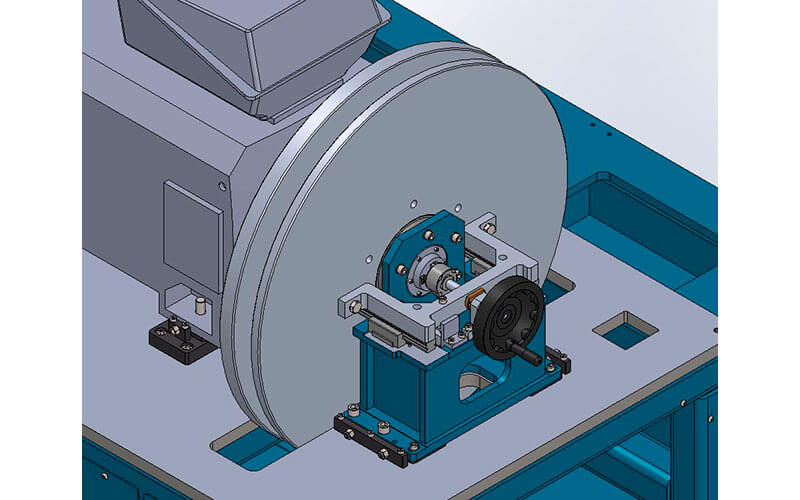

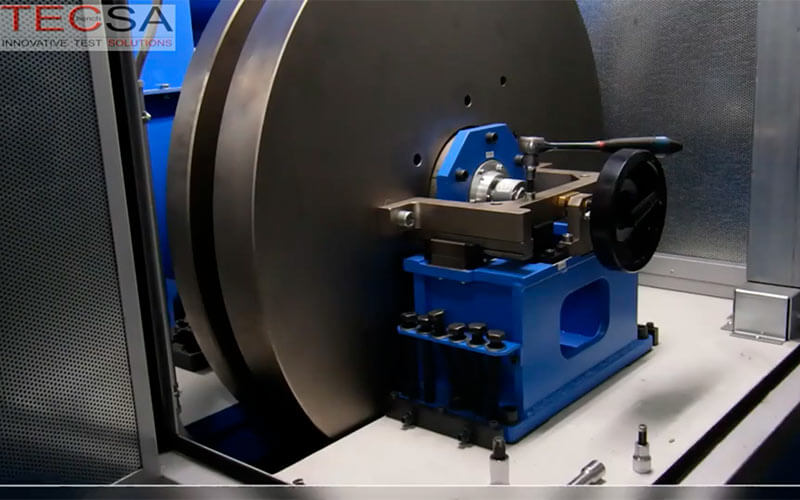

- Inertia: fixed flywheel 30 kgm2, moveable flywheel 40 kgm2
- Inertia range (simulation): 5-250 kgm2
- Braking moment: 3000 Nm
- Max. pressure: 200 bar
- Modulated ventilation: max. 3000 m3/h
- AC motor: 315 kW
- Max. speed: 2500 rpm
- Inertia: fixed flywheel 50 kgm2, moving flywheel 50 kgm2
- Inertia range (simulation): 5-300 kgm2
- Braking moment: 5000 Nm
- Max. pressure: 200 bar
- Modulated ventilation: max. 3000 m3/h
- Climate chamber – ECU (Environment Control Unit)
- DTV (Disc Thickness Variation)
- NVH (Noise Vibration Harshness)
- Oil absorption measurement
- Residual torque system

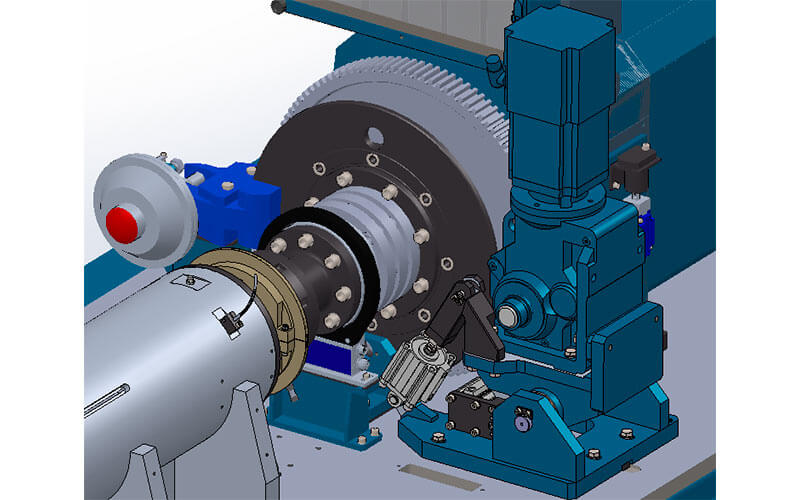

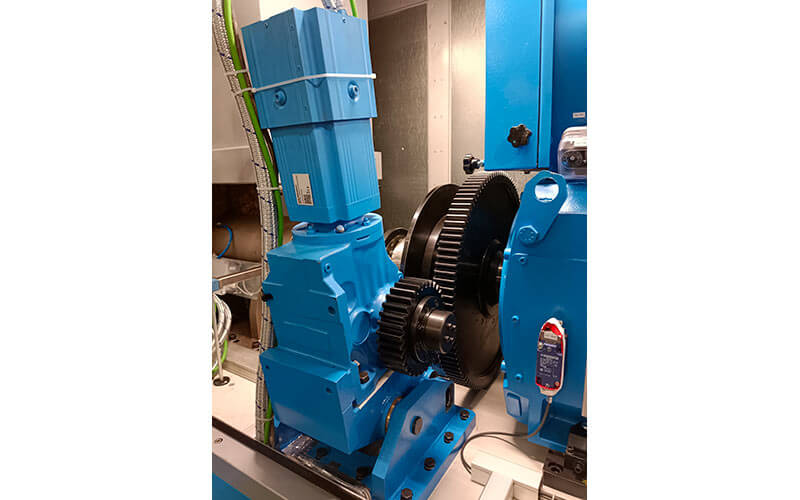

- Static friction analysis
- Water sprinkling system
- Handbrake Actuator
- EPB trolley (electric parking brake)
- Video camera
