- DC Motor: 493 kW
- Max. Braking Moment (Torqueing Moment): 40000 Nm
- Max. Pressure: 15 bar
- Max. Speed: 2100 rpm (350 km/h)
- Four Inertia Flywheels in Free Combination: 350-350-700-1050 kgm²
- Inertia Range (at 1 g): 30-5100 kgm²
- Inertia Simulation
- Modulated Airflow: max. 14000 m³/h
- Homokinetic Joint and Axle Assembly
- Hydraulic Brakes: 200 bar
- Static Friction: max. 40000 Nm, 5 rpm
- Noise Acquisition (equivalent level)
- Absorption Tests
- Stroke Measurement of Brake Actuator
- DTV (Disc Thickness Variation)

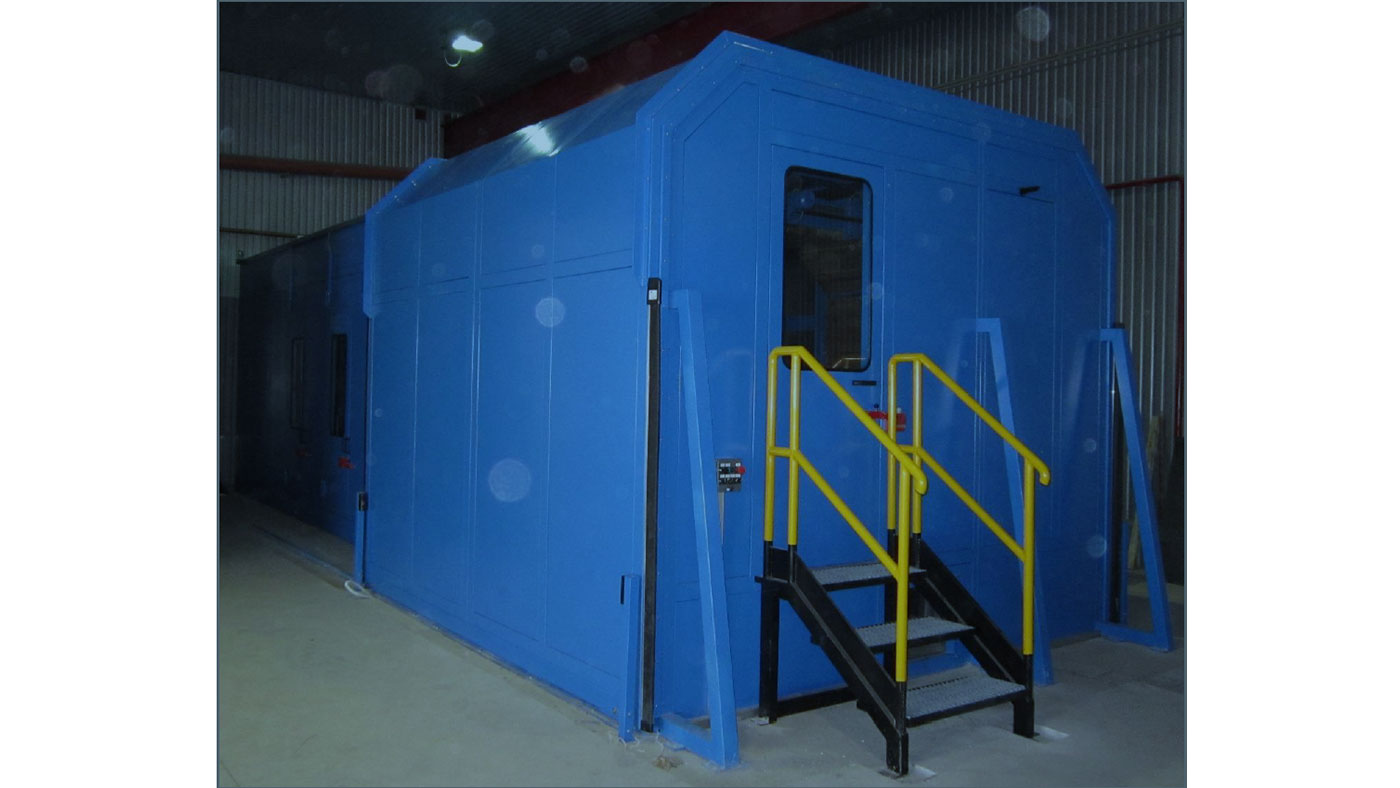

- Climatic System
- Sprinkling System: Water, Salted Water, Snow
-
- Simple
-
- with Axle
-
- Drum Brakes
-
- Disc Brakes

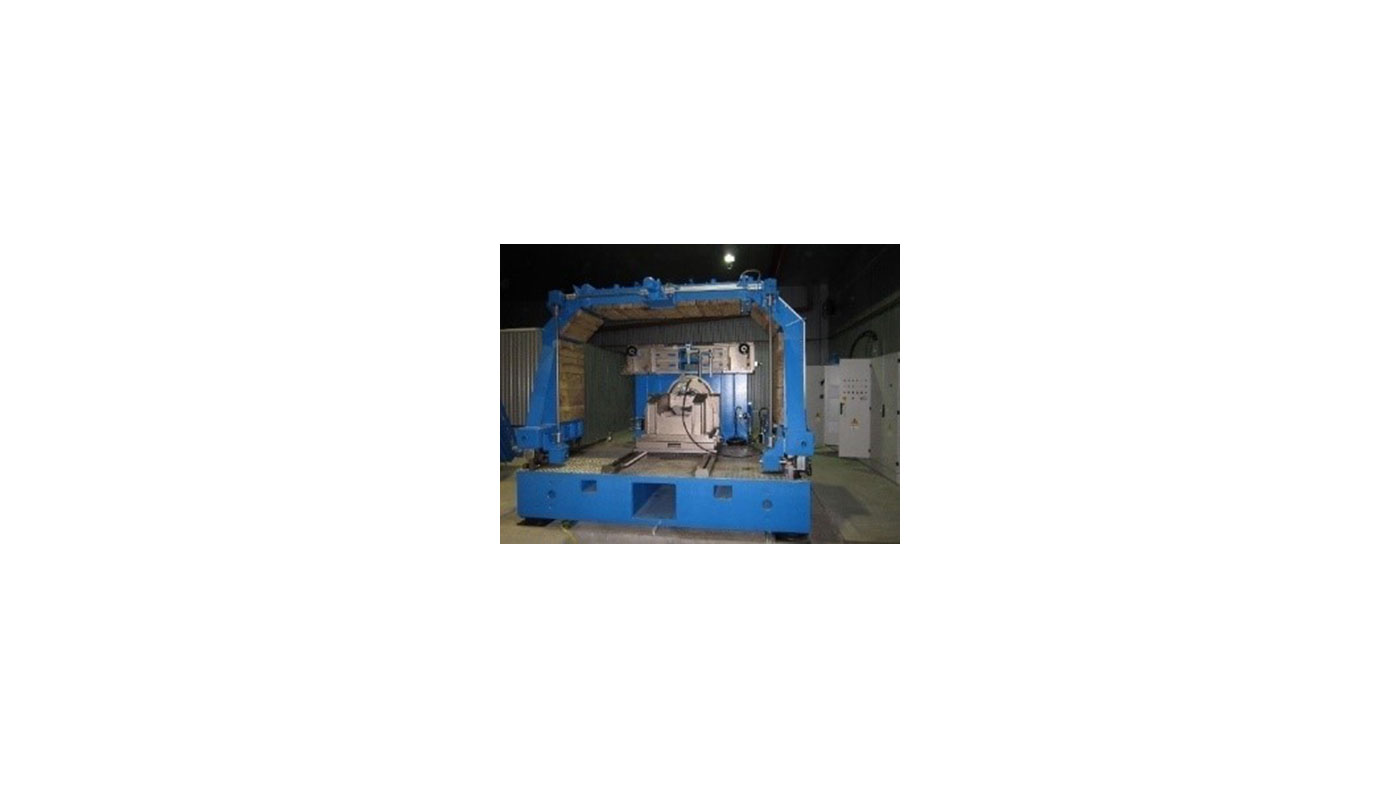

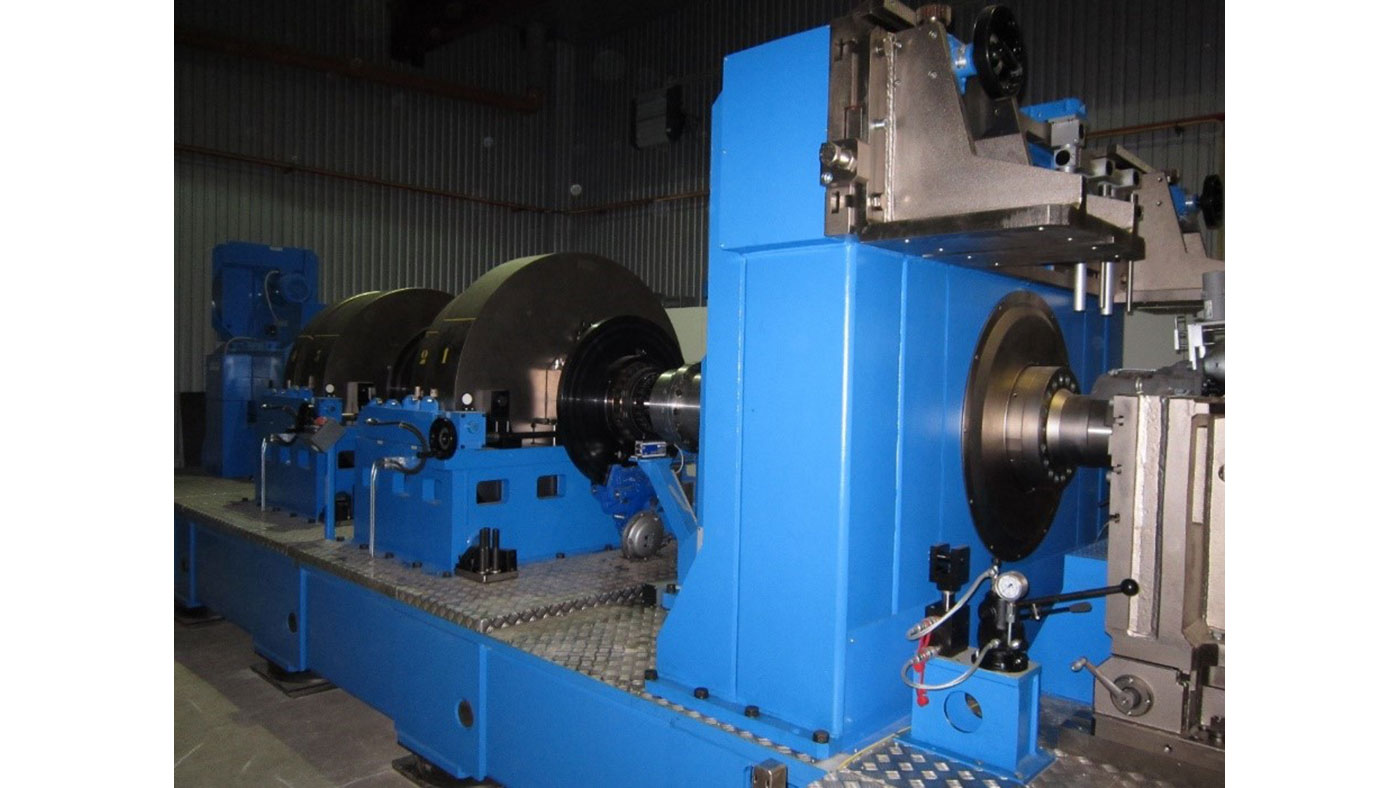

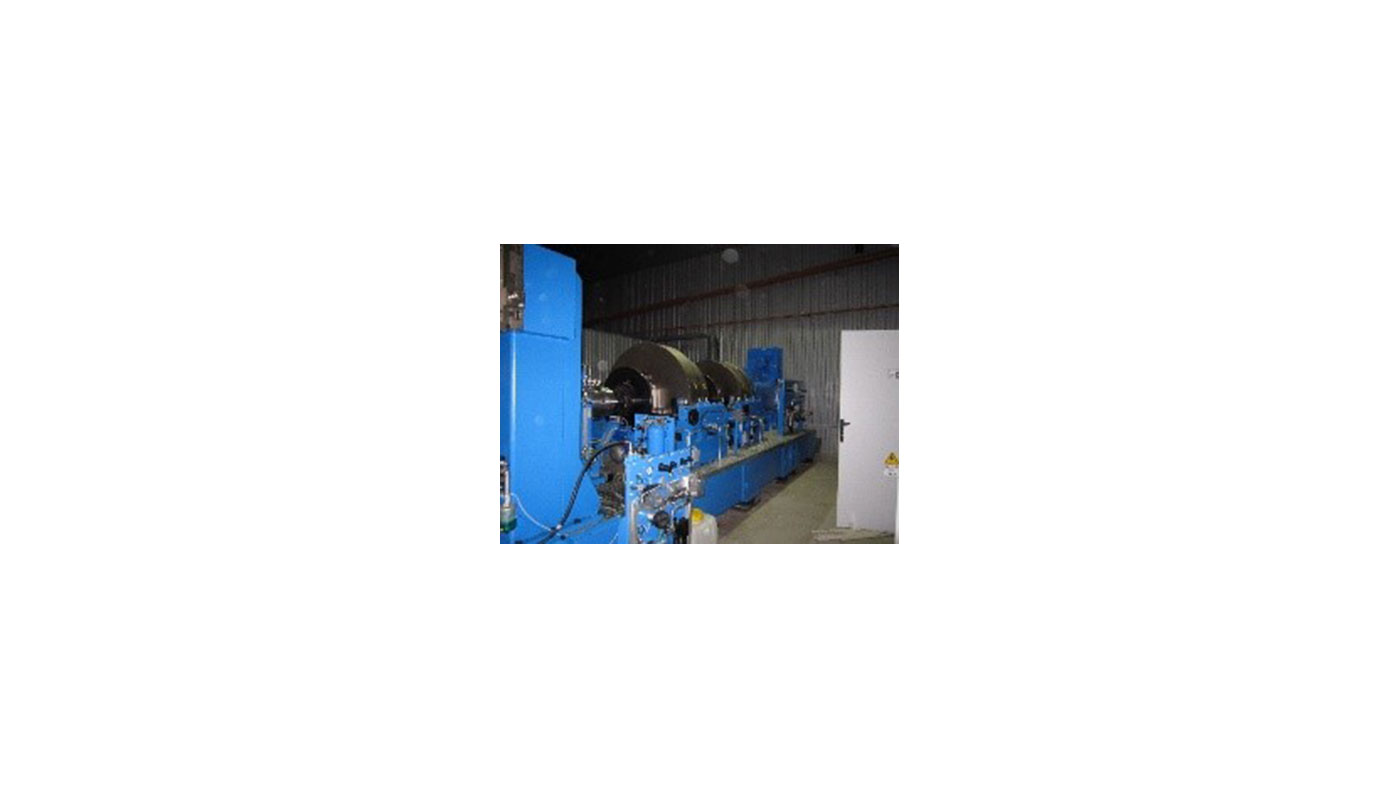

TR 2600
Dynamometer bench for truck and railways sector
- Performance tests for light commercial vehicles and heavy commercial vehicles and railways sector
- Brake Mounting:

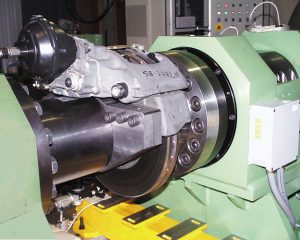

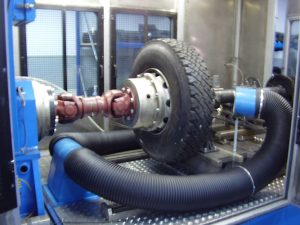

- Truck: simple, with wheel hub, with axle
- Railways: drum brakes, disc brakes
